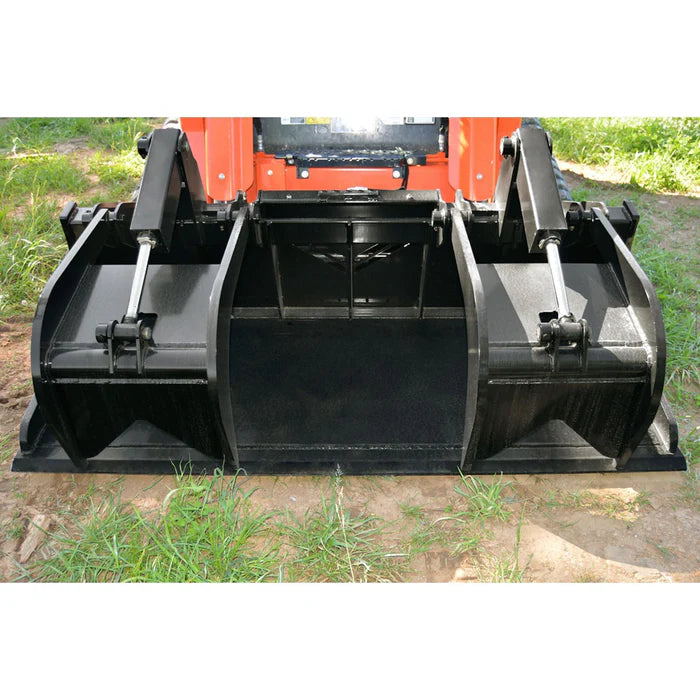

Loflin Fabrication XHD Grapple Bucket
Heavy-Duty Power & Performance
The Loflin Fabrication Xtra Heavy Duty Grapple Bucket is purpose-built for operators who demand superior strength, versatility, and control when tackling extreme jobs. Designed with 1” thick independent grapple tines, 9,500 lbs. of grappling force, and a reinforced bucket body, this attachment is a workhorse for construction, demolition, forestry, and land-clearing applications.
With broad grapple openings, independent hydraulic operation, and fully protected hoses and cylinders, this bucket is engineered to thrive in the harshest conditions while reducing downtime and labor costs.
Key Features
Extreme Duty Build – 1” thick grapple tines and 1/4” reinforced steel bucket with 1” sides for unmatched strength.
Powerful Grappling Force – Two 2” × 10” hydraulic cylinders deliver up to 9,500 lbs. of clamping power.
Independent Grapple Tines – Adjust to uneven loads for secure handling of logs, rocks, brush, and debris.
Hydraulic Protection – Fully covered cylinders and enclosed hoses for jobsite durability.
Cutting Edge Options – Comes with a standard 1” × 8” cutting edge; optional bolt-on reversible double edge available.
Ease of Use – Reinforced quick-attach, oversized, greaseable pins, and a built-in treaded step for operator safety.
Sizes Available – Stocked in 72”, 78”, and 84” widths; custom sizes available.
Applications
Construction & Demolition – Lift, clamp, and remove debris, concrete, and demolition waste.
Land Clearing – Handle logs, brush, roots, and storm cleanup materials with ease.
Forestry & Agriculture – Move timber, fence posts, hay, and rock piles securely.
Site Preparation – Rake debris, pile materials, and perform backfill in one pass.
Utility & Roadwork – Safely move uneven loads, scrap, or bulk materials across worksites.
Why Choose the Loflin XHD Grapple Bucket?
Built for professionals, the XHD Grapple Bucket combines extreme-duty construction, unmatched clamping force, and reliable American manufacturing. From separating dirt from rock to loading logs or demolition debris, it’s a tool that saves time, reduces labor costs, and withstands years of punishing use.

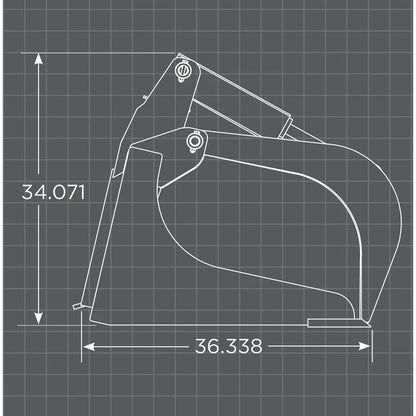

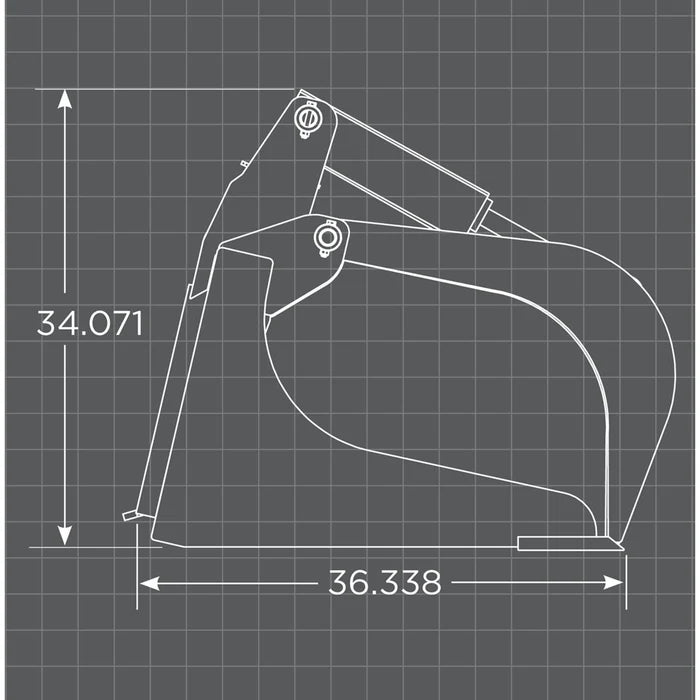

Specifications for Xtra Heavy Duty Grapple Bucket
| Specification |
Details |
| Grapple Tines |
1″ thick independent tines |
| Hydraulic Cylinders |
(2) 2″ × 10″ |
| Grappling Force |
9,500 lbs. |
| Opening Width |
31 7/16″ |
| Cutting Edge |
1″ × 8″ (optional bolt-on reversible double edge available) |
| Bucket Bottom |
1/4″ reinforced steel |
| Bucket Sides |
1″ thick |
| Quick Attach |
Reinforced; treaded step |
| Hydraulic Protection |
Fully covered cylinders & hoses |
| Pins |
Oversized, greaseable 1 1/4″ pins |
| Sizes Available |
72″, 78″, 84″ (custom sizes on request) |
Shipping & Availability
Ships direct from Loflin Fabrication in Denton, North Carolina.
Most Xtra Heavy Duty Grapple Bucket models are regularly stocked and available for shipment across the continental U.S.
Lead times may vary slightly by grapple width and tine configuration, but most orders ship within a few business days.
